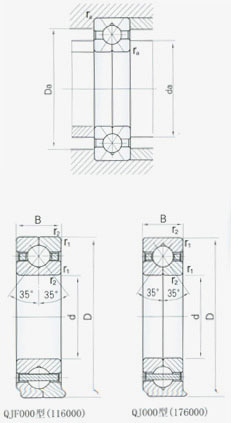

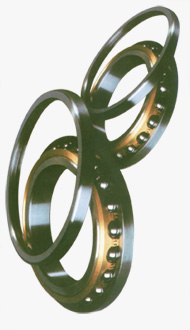

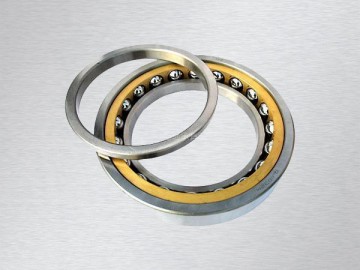

| 四點角接觸球軸承 | |
|
|
| 外形尺寸 | 額定載荷 | 極限轉速(r.p.m) | 軸承代號 | 安裝尺寸 | 重量(Kg) | ||||||||
| 動載荷Cr | 靜載荷Cor | 脂 | 油 | 現用代號 | 原用代號 | ||||||||
| d | D | B | r1.2min | damin | Damax | Ramax | |||||||
| 110 | 170 | 28 | 2 | 132 | 172 | 2400 | 3000 | QJF1022 | 116122 | 125 | 115 | 2 | 6.7 |
| 240 | 50 | 3 | 267 | 334 | 1800 | 2300 | QJF322 | 116322 | 142 | 208 | 2.5 | 12.5 | |
| 120 | 180 | 28 | 2 | 108 | 145 | 2200 | 2800 | QJF1024 | 116124 | 135 | 165 | 2 | 2.6 |
| 215 | 40 | 2.1 | 210 | 260 | 1900 | 2400 | QJ224 | 176224 | 144 | 191 | 2 | 6.9 | |
| 215 | 40 | 2.1 | 210 | 260 | 1900 | 2400 | QJF224 | 116224 | 144 | 191 | 2 | 6.9 | |
| 130 | 200 | 33 | 2 | 135 | 185 | 1900 | 2400 | QJF1026 | 116126 | 148 | 182 | 2 | 4 |
| 230 | 40 | 3 | 245 | 278 | 1900 | 2400 | QJF226 | 116226 | 155 | 205 | 2.5 | 7.5 | |
| 280 | 58 | 4 | 310 | 420 | 1400 | 1800 | QJF326 | 116326 | 168 | 242 | 3 | 18.6 | |
| 140 | 209.5 | 33 | 2 | 138 | 195 | 1750 | 2250 | QJF1028X1 | 116728 | 158 | 192 | 2 | 4.2 |
| 210 | 33 | 2 | 138 | 195 | 1750 | 2250 | QJ1028 | 176128 | 158 | 192 | 2 | 4.2 | |
| 210 | 33 | 2 | 138 | 195 | 1750 | 2250 | QJF1028 | 116128 | 158 | 192 | 2 | 4.2 | |
| 210 | 35 | 2 | 138 | 195 | 1750 | 2250 | QJF1028X2 | 158 | 192 | 2 | 4.2 | ||
| 300 | 62 | 4 | 340 | 480 | 1250 | 1650 | QJ328 | 176328 | 180 | 260 | 3 | 22.7 | |
| 150 | 224.5 | 35 | 2.1 | 175 | 245 | 1600 | 2100 | QJ1030X1 | 176730 | 169 | 206 | 2 | 5.1 |
| 224.5 | 35 | 2.1 | 175 | 245 | 1600 | 2100 | QJF1030X1 | 116730 | 169 | 206 | 2 | 5.1 | |
| 225 | 35 | 2.1 | 175 | 245 | 1600 | 2100 | QJ1030 | 176130 | 169 | 206 | 2 | 5.1 | |
| 225 | 35 | 2.1 | 175 | 245 | 1600 | 2100 | QJF1030 | 116130 | 169 | 206 | 2 | 5.1 | |
| 270 | 45 | 3 | 258 | 369 | 1350 | 1750 | QJ230 | 176230 | 180 | 240 | 2.5 | 11.8 | |
| 270 | 45 | 3 | 258 | 369 | 1350 | 1750 | QJF230 | 116230 | 180 | 240 | 2.5 | 11.8 | |
| 320 | 65 | 4 | 365 | 533 | 1150 | 1450 | QJ330 | 176330 | 193 | 277 | 3 | 27 | |
| 320 | 65 | 4 | 365 | 533 | 1150 | 1450 | QJF330 | 116330 | 193 | 277 | 3 | 27 | |
| 160 | 239.5 | 38 | 2.1 | 181 | 264 | 1450 | 1850 | QJF1032X1 | 116732 | 180 | 220 | 2 | 6.3 |
| 240 | 38 | 2.1 | 181 | 264 | 1450 | 1850 | QJ1032 | 176132 | 180 | 220 | 2 | 6.3 | |
| 240 | 38 | 2.1 | 181 | 264 | 1450 | 1850 | QJF1032 | 116132 | 180 | 220 | 2 | 6.3 | |
| 290 | 48 | 3 | 282 | 414 | 1200 | 1550 | QJ232 | 176232 | 193 | 257 | 2.5 | 14.6 | |
| 290 | 48 | 3 | 282 | 414 | 1200 | 1550 | QJF232 | 116232 | 193 | 257 | 2.5 | 14.6 | |
| 170 | 259.5 | 42 | 2.1 | 226 | 333 | 1300 | 1600 | QJF1034X1 | 116734 | 193 | 237 | 2 | 8.5 |
| 260 | 42 | 2.1 | 226 | 333 | 1300 | 1600 | QJ1034 | 176134 | 193 | 237 | 2 | 8.5 | |
| 260 | 42 | 2.1 | 226 | 333 | 1300 | 1600 | QJF1034 | 116134 | 193 | 237 | 2 | 8.5 | |
| 265 | 42 | 2.1 | 226 | 333 | 1300 | 1600 | QJF1034X1-1 | 116134K | 194 | 241 | 2 | 9 | |
| 170 | 279.5 | 46 | 2.1 | 255 | 388 | 1200 | 1500 | QJF1034X3 | 198 | 252 | 2 | 12.7 | |
| 310 | 52 | 4 | 310 | 480 | 1100 | 1400 | QJ234 | 176234 | 205 | 275 | 3 | 18.2 | |
| 310 | 52 | 4 | 310 | 480 | 1100 | 1400 | QJF234 | 116234 | 205 | 275 | 3 | 18.2 | |
| 360 | 72 | 4 | 410 | 670 | 1000 | 1200 | QJ334 | 218 | 312 | 3 | 41.7 | ||
| 180 | 259.5 | 52 | 3.5 | 206 | 310 | 1300 | 1600 | QJ3936X1 | 176736 | 200 | 240 | 3 | 9.5 |
| 259.5 | 52 | 3.5 | 206 | 310 | 1300 | 1600 | QJF3936X1 | 116736 | 200 | 240 | 3 | 9.5 | |
| 259.5 | 42 | 3 | 206 | 310 | 1300 | 1600 | QJ2936X1 | 176736Y | 200 | 240 | 2.5 | 7.7 | |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 注：FAG型號中帶*為外形尺寸中帶括號尺寸 |
